Commercial Lowering Trailers and

Multi-fit Pod lowering systems.

After a serious trailer?

Want your trailer to lie flat on the ground?

No ramps required

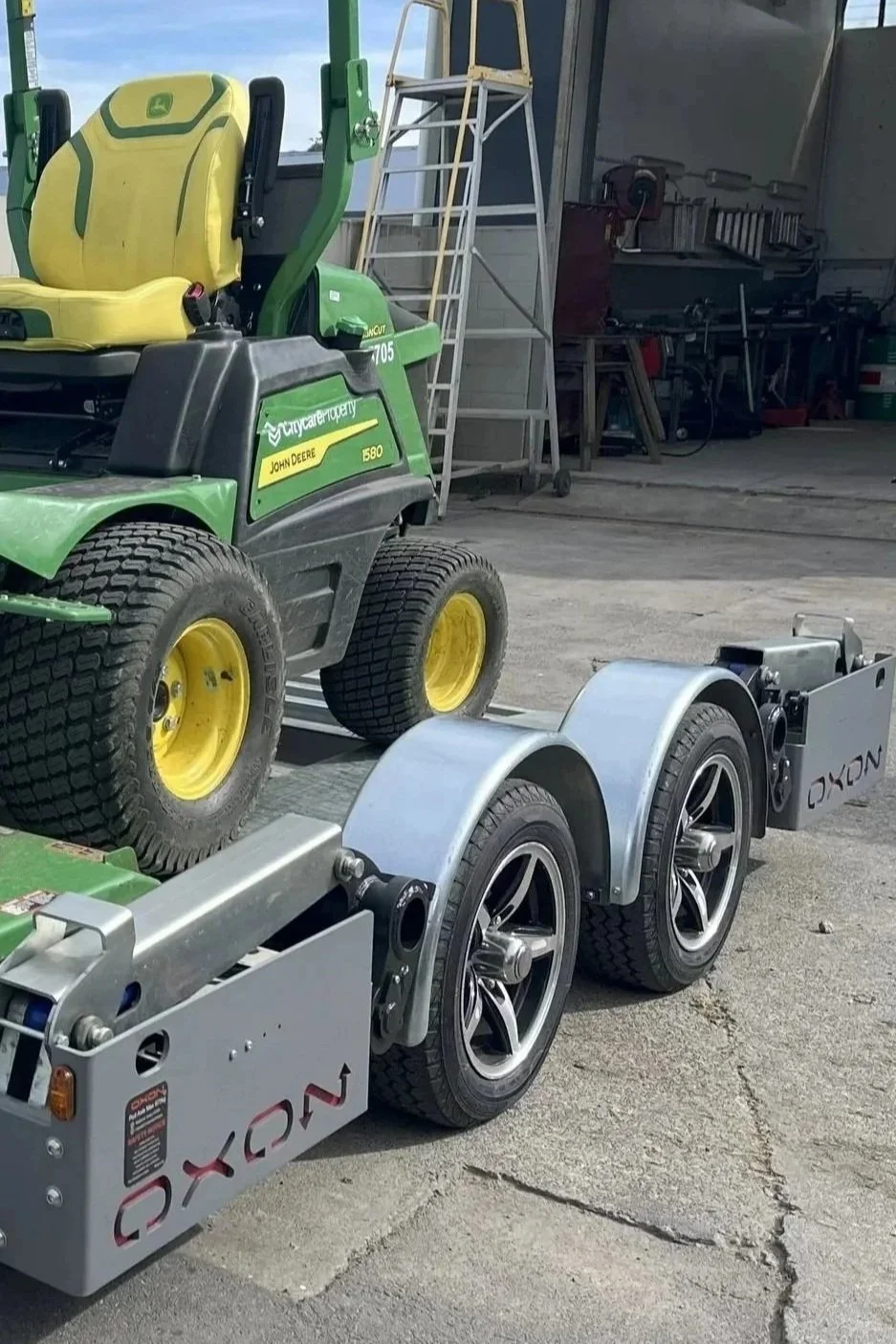

Oxon EasyLoad leads the way in commercial grade, hydraulically lowering trailers. Ramps are a thing of the past, the future lies in safe and secure loading and unloading trailer operation.

A ramp-less trailer that lies flat on the ground is the answer to:

*Low ground clearance vehicles

*Safe loading of pallets and barrowed loads

*Superior handling of livestock

*Loading of specialist equipment such as commercial mowers to water tanks

*Safe loading of civil engineering equipment

*Smooth, independent state of the art suspension for towing, load lift and lowering transitions.

Safety and efficiency are key benefits of this commercial grade hydraulic system.

Oxon EasyLoad has design features that leave it unrivalled:

*Retro fit, fully equipped pod system, no additional ancillary boxes for pumps etc required

*Each individual pod is rated at 875kg axle weight (2 pods = 1750kg, 4 pods = 3600 kg)

*Fit for both single and tandem axle applications

*Full independent elastomer suspension that provides the smoothest of rides

*Highest quality hydraulic systems and high load bearings

*Full mechanical lock out of hydraulic systems ensures against the unusual occurrence of failure, giving peace of mind and total protection from accidental lowering.

*Easy to maintain with many parts being standard industry “off the shelf” availability

*FE computer and real-world verification of design elements to ensure high strength performance

*Welding performed by formally qualified (ticketed) fabricators

*Metal finishing to the highest of standards with electro zinc plating, followed with powder coating.

*Super safe operation with controlled lowering and lifting rates and pinch points minimised.

*Open architecture design for ease of cleaning and maintenance.

Oxon Trailer Specifications:

Oxon EasyLoad trailers come in a variety of configurations and sizes.

Each trailer is manufactured from CNC based components, ensuring high accuracy and quality builds, every time. We avoid the use of butt type joints; Oxon trailers have a range of interlocking and recessed joints within their structure. This makes for a very strong joint that isn’t totally reliant on welding alone. All welds are performed by formally qualified, ticketed welders. The chassis is self-supporting, so not requiring the deck as a stressed member.

This makes for versatility of design allowing a variety of materials and decking type to be specified.

Each Oxon trailer is hot dipped galvanized for superior corrosion resistance.

Because of the modular nature of our designs and manufacturing processes, we have very customizable designs. This can range from smaller Dual pod (2 wheels), flat deck trailers to Quad pod (4 wheels) fully enclosed transporters Braking systems are also part of the trailer option. Dual pod and Quad pod (up to 2500 kg GLW) typically run hydraulic drum type brakes. Quad pod (2500 to 3500kg GLW) features electric brakes, meeting the New Zealand LTSA standards.

*CNC components, accurate build quality, rugged construction

*Interlocking joints, removes reliance on welds alone

*Customisable sizes with both open deck and closed box styles possible.

*Wide range of decking specification to suit specific applications

* Fully galvanised dipped metal finishing

*Specifically designed to work in conjunction with the Oxon EasyLoad pod system.
